Product Description:

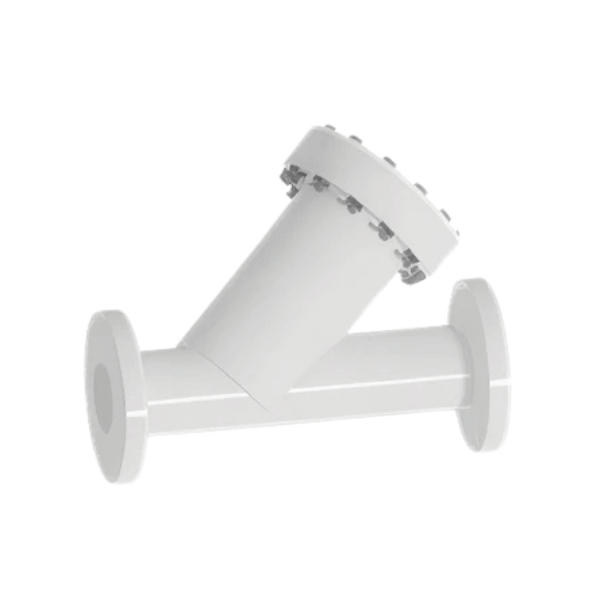

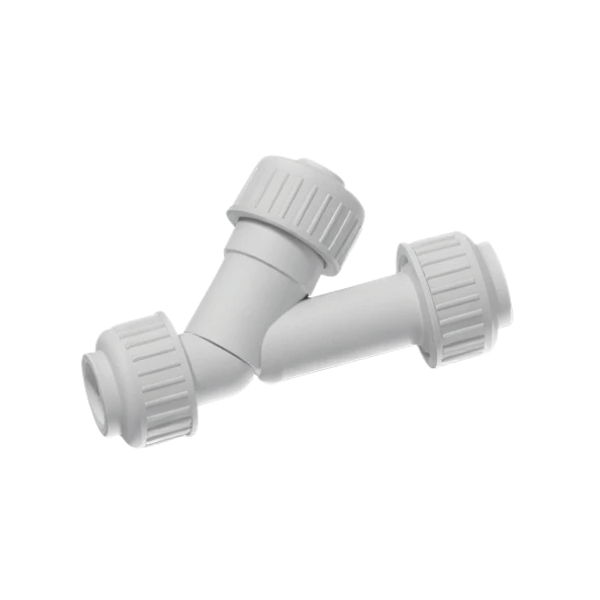

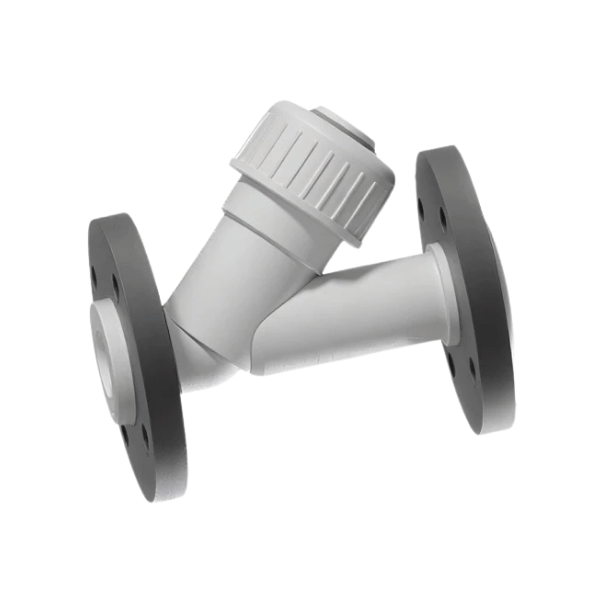

The PVDF angle seat check valve prevents backflow to protect pumps and equipment, with a position-independent design that works reliably in either vertical or horizontal installations. Its PVDF body delivers the highest chemical and temperature resistance in the range, ideal for highly aggressive media and demanding applications, while the inclined seat ensures smooth flow and dependable sealing with easy servicing. Available with EPDM or FPM seals in DN15 to DN50 with socket-union or flanged connections, and in DN65 to DN100 flanged. Pressure ratings are PN16 for DN15–DN50 and PN10 for DN65–DN100. Flanged versions are drilled to DIN standard, with ANSI available upon request.
